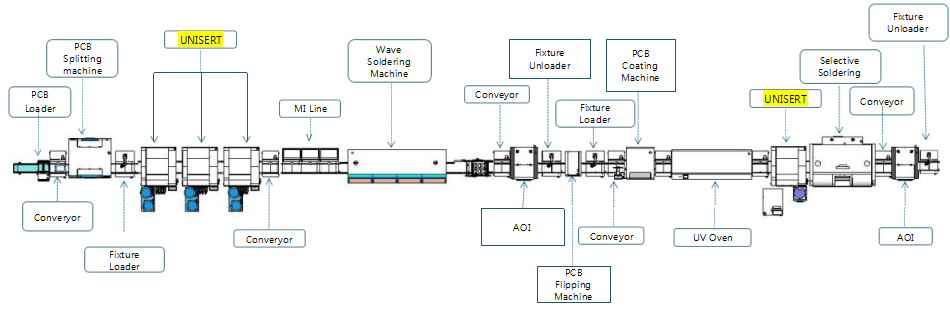

Automatic Insertion Line Layout

Products Information

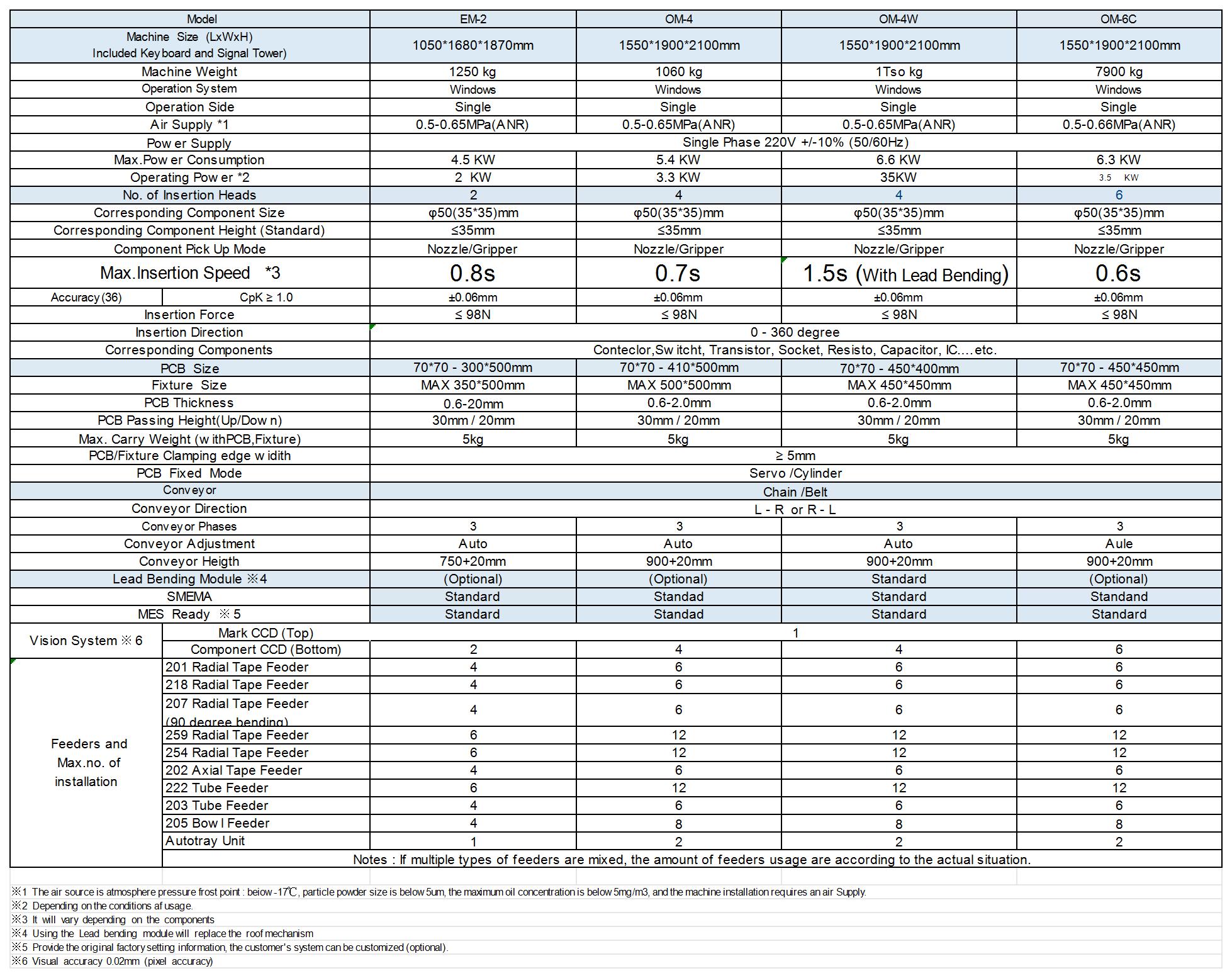

Specification

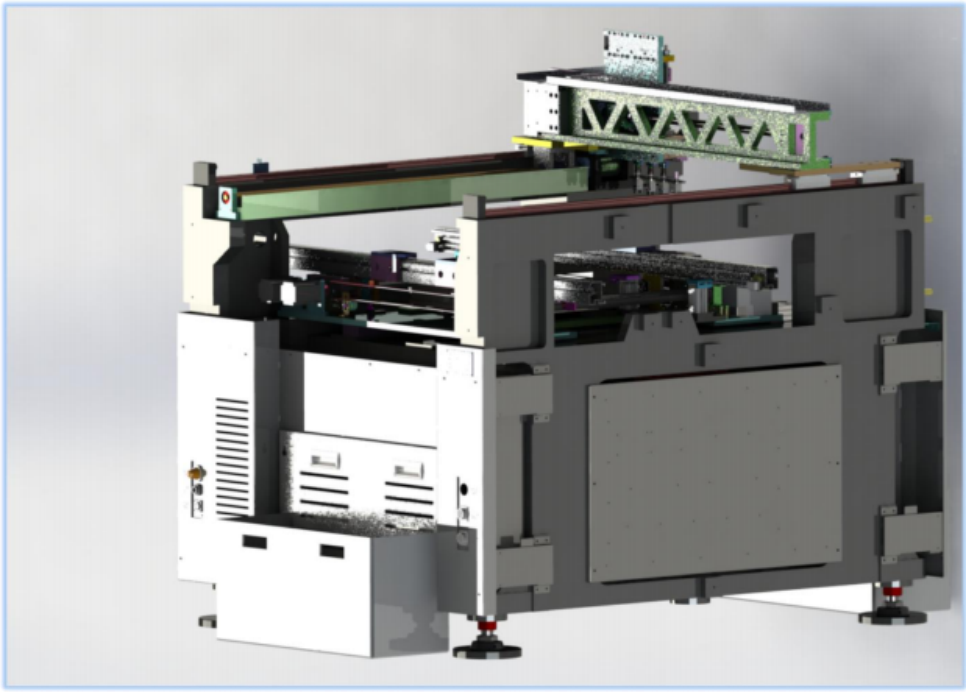

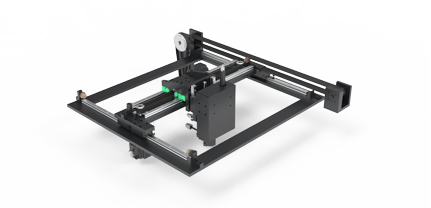

Body Structure

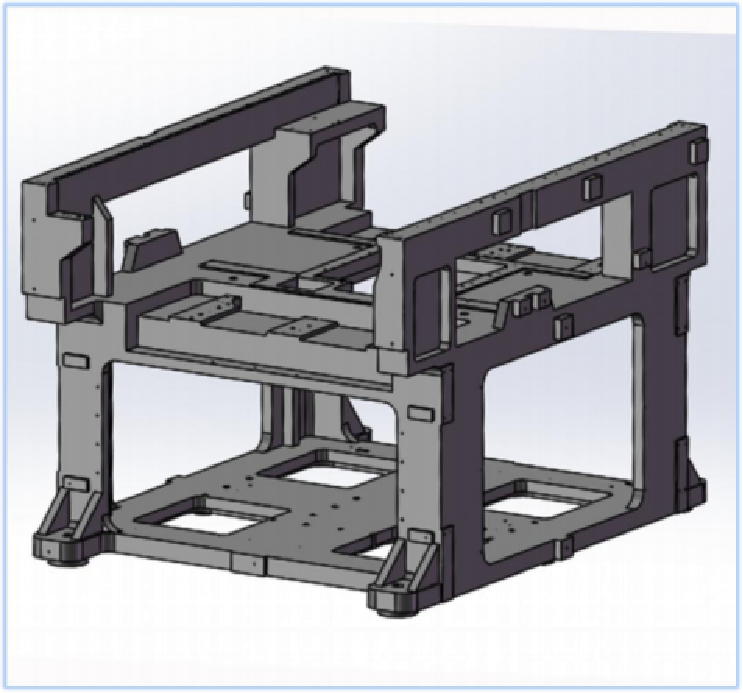

One-piece cast frame body for Stability and Accuracy !!!

Hardware

REMARKS：

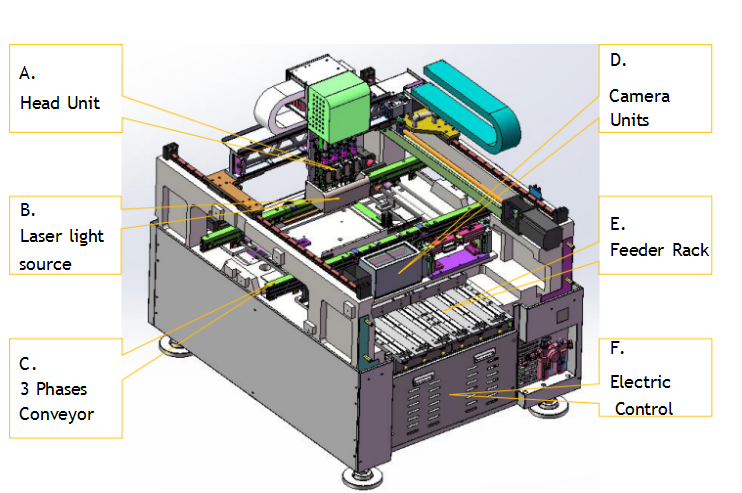

A.   Head Unit be divided into three kinds, 2 heads/ 4 heads/ 6heads.

B.   The Laser light ensure the high light source  for camera unit.

C.   3 phases conveyor to ensure the high

speed and stability for PCB transportation.

D.   Camera Units : All models consist of 1 top camera, and 2 to 4 bottom cameras

depends.

E.   Feeder Rack for fast and easy installation of all kind of feeders.

F.   All Electric devices and control units are

inside the basement which easy for maintenance.

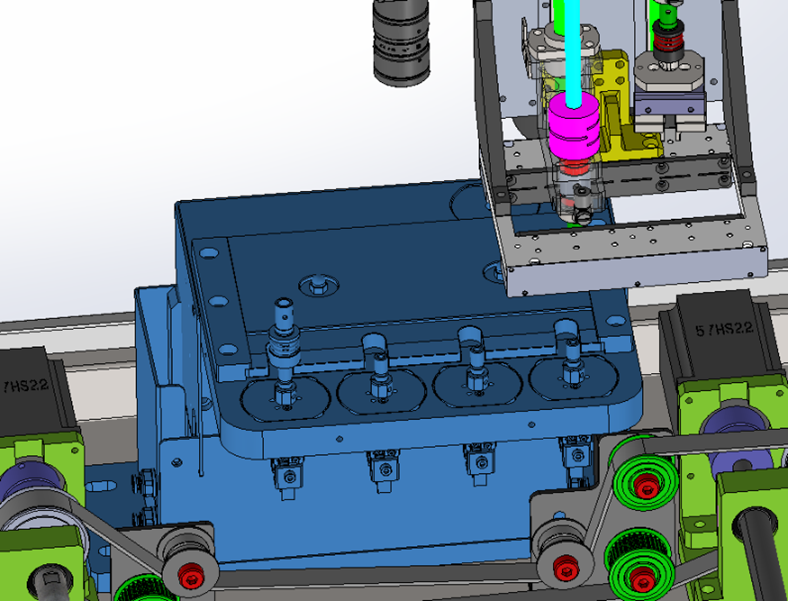

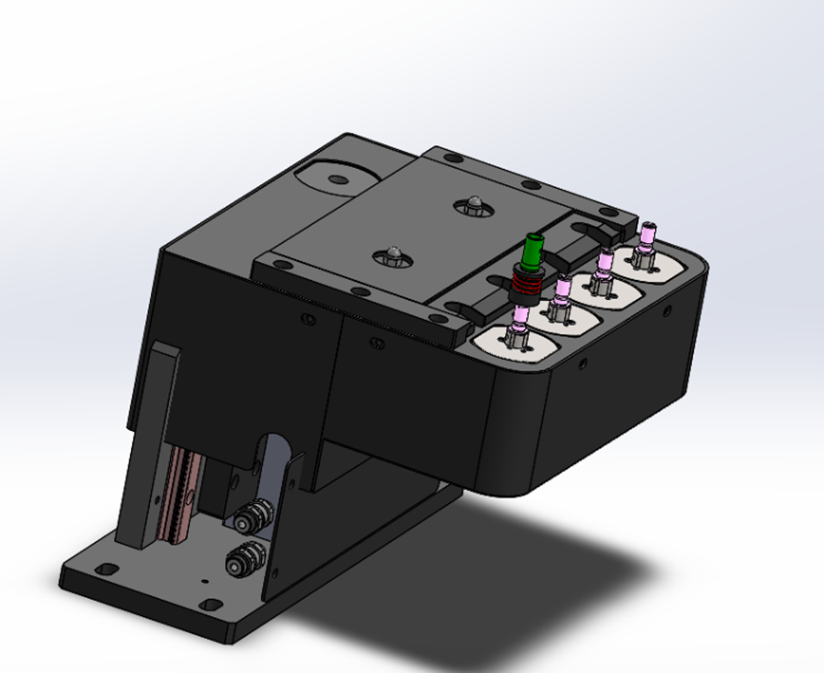

Special Hardware Unit(Optional)

Auto Nozzle Changer Unit

Auto Nozzle Changer Unit : Programmable to  automatically change the pickup head nozzle.

Lead clinching Unit

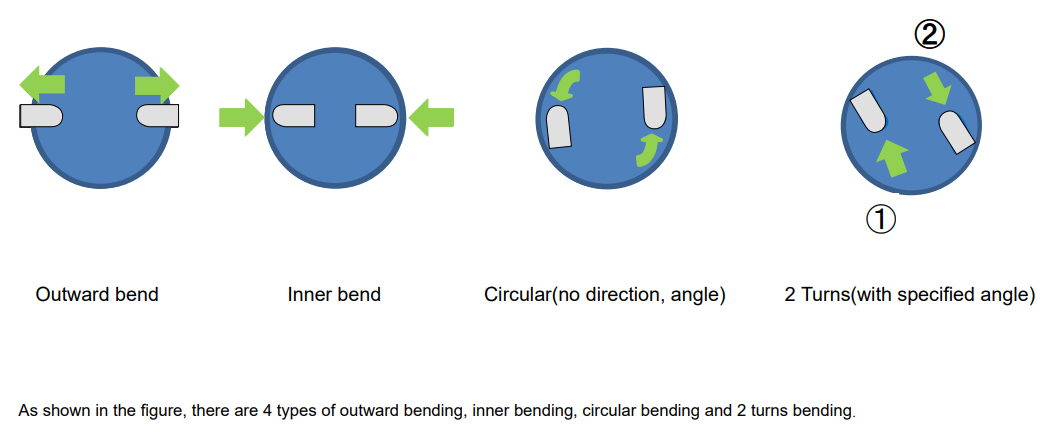

Lead clinching Unit : realizes the lead bending  after insertion.
